Integratech PIR sensor for PHBP highbay. The PIR sensor is equipped with a jack connector and is quickly and easily connected to the device. Maximum mounting height 12 meters. Sensitivity 20/50/75/100%. Switch-off delay 10s/1m/5m/10m/15m/20m/30m/60m. Daylight sensor 10/30/50lx. Switch-off function in daylight 100/300/500lx adjustable. Standby level 1m/30m/60m/always. Manual on and off with hand transmitter, standard light level adjustable to 70/80/90/100%. 4 programs can be saved. Sensor works on low voltage 12 ~ 24VDC, current sink 25mA.
- Family
- PHB
- Connection voltage
- 12V
- IP Code
- IP65
- Recupel
- 9.07

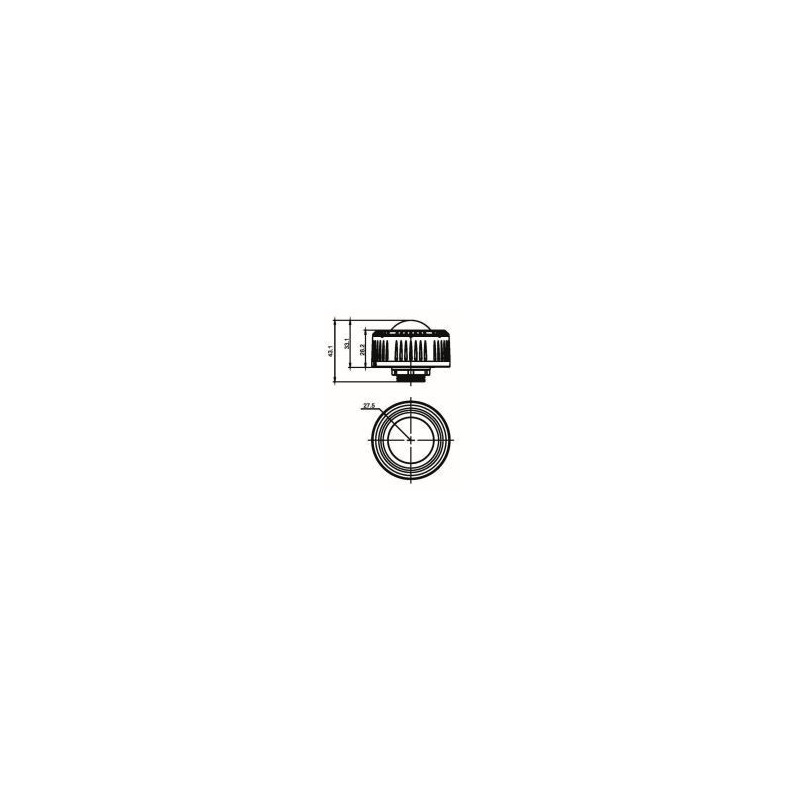

- Diameter
- 55
- Length
- 55
- Width
- 55
- Height
- 43
- Weight
- 0.3
- Sales unit
- 1
- Warranty
- 2 years
5420076264710
